Viair 350C Compressor 100% Duty Cycle 150 PSI Max.

Home > Air Compressors > Medium & Small Compressors >

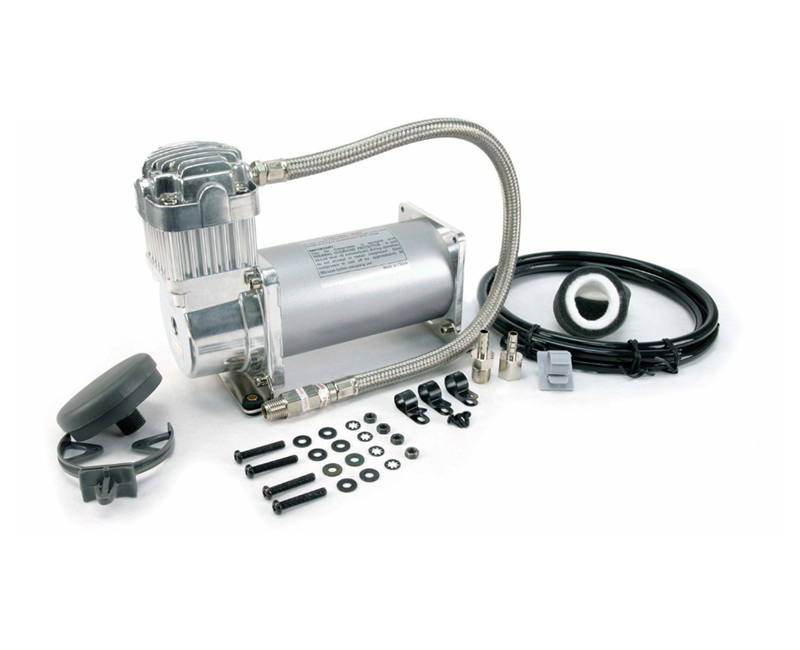

Viair 350C Silver Air Compressor Kit 150 PSI Max.

List Price: $346.50

Our Price: $272.95

Savings: $73.55

Availability:: Available
Product Code: 35030

Qty:

Description

350C operates using low amp draw so they’re versatile for many mobile pneumatic applications. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

Included Parts:

- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions

Specifications:

- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 22 Amps
- Ingress Protection Rating: IP54
- Dimensions: 9"L x 4"W x 6.75"H

Recommended Components:

- 5.0 Gallon Tank (P/N 91050)
- 2.5 Gallon Tank (P/N 91025)
- 12V Relay (P/N 93940)
- Pressure Switch (P/N 90100, 90101,90102)
- Pressure Switch with Relay (P/N 90110, 90111)
- Sealed Pressure Switch (P/N 90217, 90223, 90227)
- Leader Hose with Check Valve (P/N 92793)

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
