Viair 325C Compressor 33% Duty Cycle 150 PSI

Home > Air Compressors > Medium & Small Compressors >

Viair 325C Silver Air Compressor Kit (12V, 33% Duty, Sealed)

List Price: $332.95

Our Price: $259.95

Savings: $73.00

Availability:: Available
Product Code: 32530

Qty:

Description

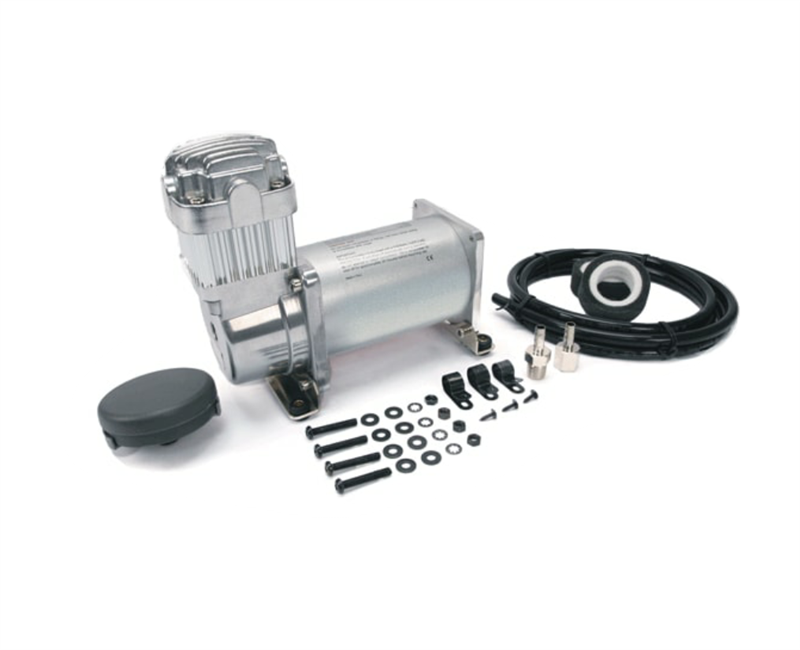

325C-12V are compressors that work with low amp draw. Features include a standard 1/4" NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

Included Parts:

- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions

Specifications:

- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP54
- Dimensions: 8"L x 4"W x 6.75"H

Recommended Components:

- 5.0 Gallon Tank (P/N 91050)
- 2.5 Gallon Tank (P/N 91025)
- 12V Relay (P/N 93940)
- Pressure Switch (P/N 90100, 90101,90102)
- Pressure Switch with Relay (P/N 90110, 90111, 90113)
- Sealed Pressure Switch (P/N 90217, 90223, 90227)
- Leader Hose with Check Valve (P/N 92793)

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
