Viair Medium Duty Onboard Air System 150 PSI/ 1.59 CFM 325C Compressor System with 2.5 Gallon Tank - 10003
Ultra Light Duty 10003 PN with 325C Compressor

Alternative Views:
List Price: $589.95
Our Price: $444.95
Savings: $145.00


Free Shipping
Availability:: Avilable
Product Code: 10003
Qty:

Description


Viair Medium Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gallon tank -10003

VIAIR’s Medium Duty Onboard Air System is a pre-packaged compressed air solution that provides a 33% duty cycle 325C compressor, 2.5 gallon air tank, and all components needed to install basic vehicle-based pneumatic. Fills up to 33" Tires

Please Note: Use thread sealant for proper installation.Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 12 ~ 15 ft. lbs.

Features
- 2.5 Gallon VIAIR Air Tank
- 325C VIAIR Air Compressor
-Dash Panel Gauge with ON/OFF Switch
- Pressure Switch with Relay (110 PSI on, 145 PSI off)
- Reducer 1/4 X 1/8"
- 175 PSI Safety Valve
-1/4" Quick Connect Coupler (Male)
- 1/4” Drain Cock
- 20 FT 12-Gauge wire with inline fuse holder
- 4" Strip of Continuous Grommet Material
- Accessory Airline
- Electrical Connections All Fittings are NPT rated unless otherwise noted.

Specifications
  • 12V DC
  • Permanent Magnetic Motor
  • Duty Cycle : 33% @ 100 PSI
  • Max Working Pressure: 150 PSI
  • Max Amp Draw: 21 AMPS
  • Ingress Protection: IP67

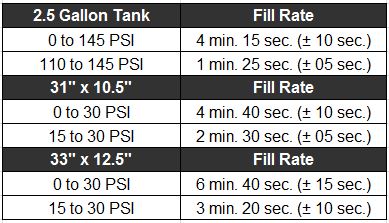

Fill Rates

Click Here to Download Manual

Click Here For Dimensional Drawing

Click Here For Wiring Diagram

Click Here For Plumbing Diagram
