Viair Heavy Duty ADA System, Universal-Mount, with Inflation Kit (P/N 40049)
Viair 40049 ADA System PN 40049

List Price: $730.95
Our Price: $549.95
Savings: $181.00


Free Shipping
Availability:: Usually Ships in 1 to 2 Days
Product Code: 40049
Qty:

Description


Viair Heavy Duty Automatic Deployment Air System 150 PSI Max, 2.30 CFM Universal Type, Fills Tires up to 35"

Using a 33% (Heavy Duty) duty cycle 400C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required

Features:
- 400C Compressor
- Extruded Aluminum Air Tank (12-port)
- Toggle Switch
- Air Line for Remote Mount Air Filter Installation
- (2) Remote Mount Air Filter Relocation Fittings
- 1/8” NPT Drain Cock
- 1/4” NPT Safety Valve
- (8) 1/4” NPT Hex Plug
- 1/4” NPT Sealed Pressure Switch (85/105 PSI)
- (2) 1/4” NPT BSP Adapter
- 1/4” NPT Automatic Coupler

Digital Tire Inflation Kit:
- 30’ Inflation Hose with Automatic Couplers
- Digital Tire Inflation Gun

Wiring Harness:
- 30-amp Delphi Connector Set
- 60-amp Fuse Holder
- 40-amp Fuse
- (2) 1/4” Ring Terminal
- 5/16” Ring Terminal
- (3) Female Spade Terminal Connector

Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 30 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9"L x 4"W x 6.75"H

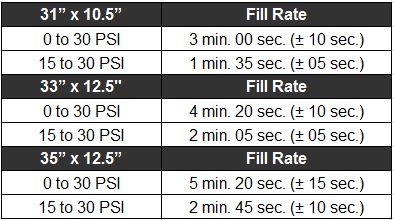

Fill Rates


User Manual
Dimensional Drawings
Wiring Diagram
