Viair 380C Stealth Black Dual Air Compressors 200 PSI
380C Black Dual Air Compressors

List Price: $479.95
Our Price: $357.95


Free Shipping
Availability:: Available
Product Code: 38036
Qty:

Description Technical Specs Instructions


Viair 380C STEALTH BLACK Dual Combo Air Compressors 200 PSI Max. - Free Shipping. Free Shipping in Lower 48 States only. NO PO BOX Delivery, Only to Physical Addresses.

380C Dual Performance Value Packs include two 380C compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware. Dual Performance Value Packs are rated to fill tank volumes up to 10 gallons.

Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Included Parts:

- (2) 380C Stealth Black Air Compressors W 1/4" NPT Leader Hoses With Inbuilt Check Valves
- (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (2) Leader Hose Clips
- (6) Air Line Clips with Included Hardware
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (2) Heavy Duty 40-Amp Relays
- (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- Air Line (For Remote Mount Filter Installation)

Specifications:

- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Max. Amp Draw: 44 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9"L x 4"W x 6.75"H (Each Unit)

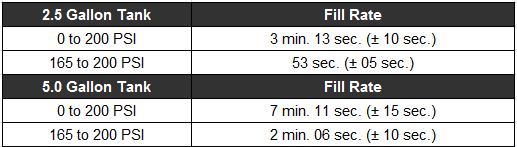

Fill Rates:
