Viair 410 SS Single Air Compressor
Viair Stealth Series Air Compressors

Alternative Views:
List Price: $552.95
Our Price: $487.44


Free Shipping
Availability:: Usually Ships in 2 to 3 Days
Product Code: 41040
Qty:

Description


Viair 410 SS "Stealth Series" Single Air Compressor, 50% quieter, 200 PSI working Pressure, 100% duty Cycle, 23 Max Amps, Air Suspension compressor, Air Ride pump -

Free Shipping, Lower 48 States only.

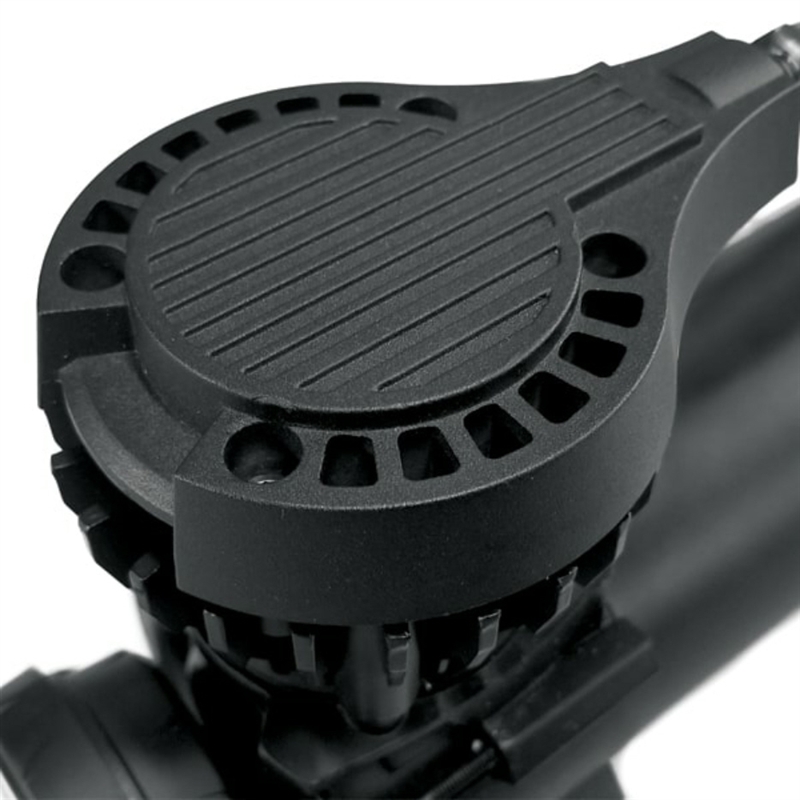

VIAIR’s all-new 410 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors*. Additionally, the 310 Stealth-Series compressors are Rhos/REACH certified and equipped with newly designed spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves that eliminate the possibility of high amperage restarts.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.


Features & Included Parts:
- Thermal Overload Protector
- Black Sleeved Stainless Steel Braided Leader Hoses
- Inline Check Valve

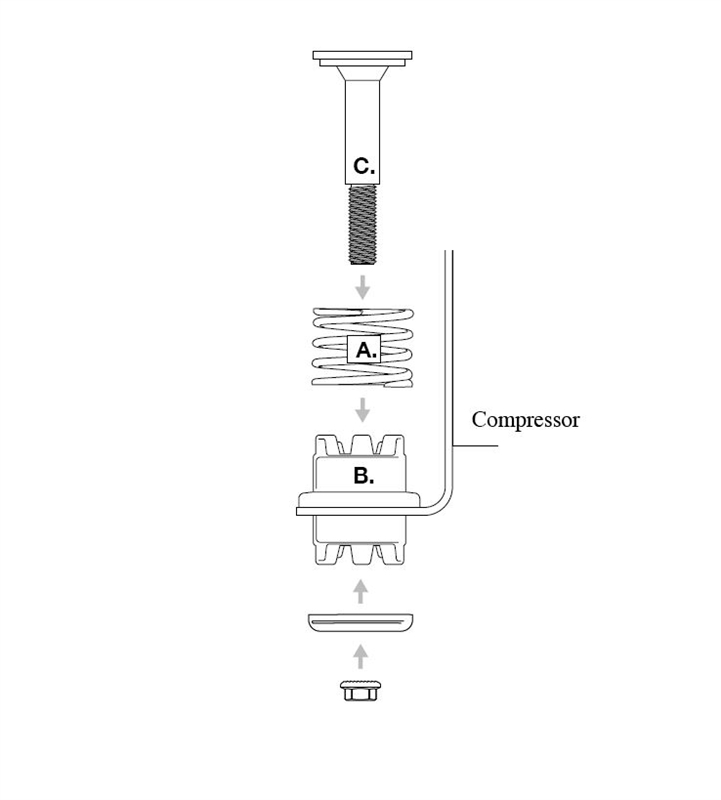

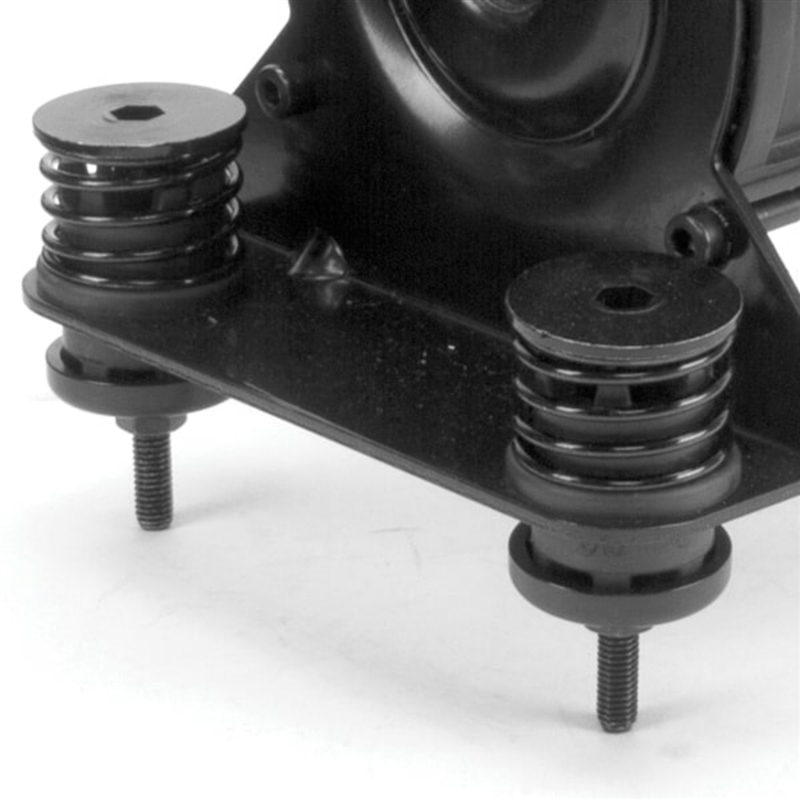

- Spring Loaded Vibration Isolating Feet
- Mounting Hardware
- Airline for Remote Mount Air Filter

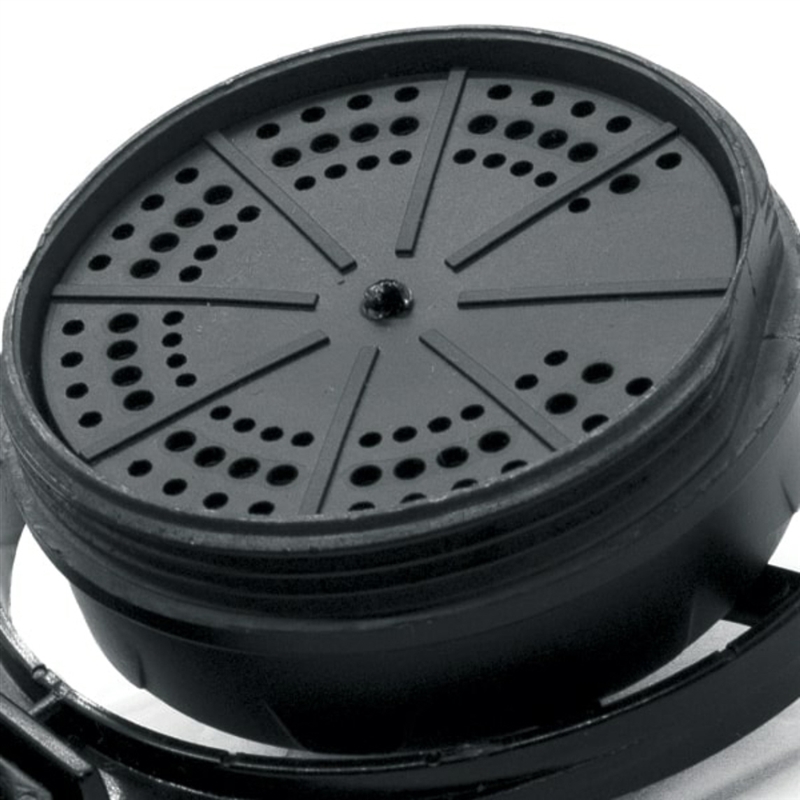

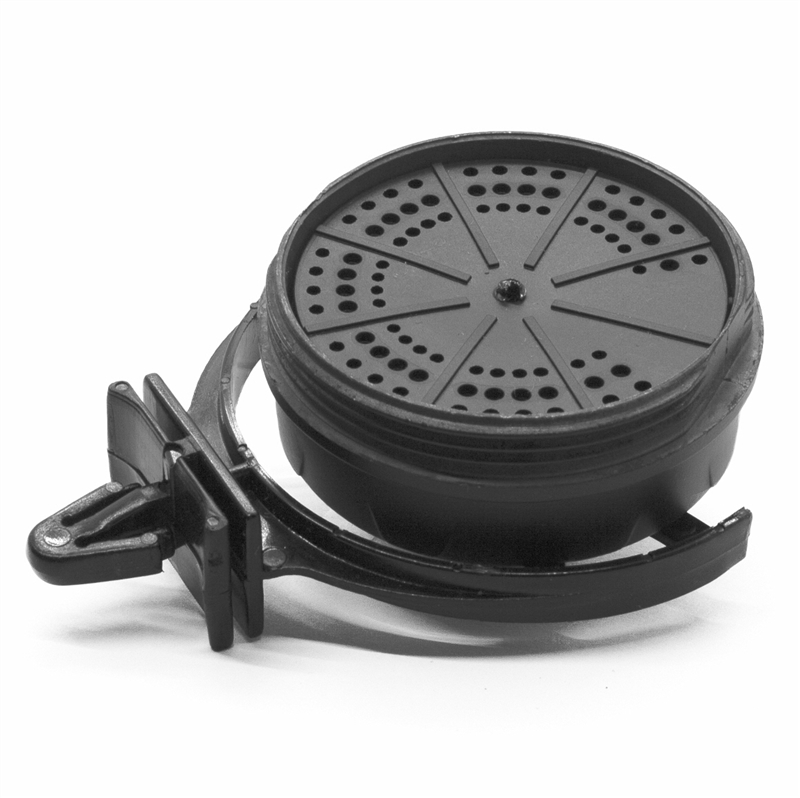

- Remote Mount 6-Stage Air Filter/ Muffler Assemblies
- (2) Replacement Air Filter Elements
- Installation Instructions

Specifications:
- 12-Volt DC
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Duty Cycle: 50% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.70" L x 4.4" W x 7.30" H (271.78mm L X 111.76mm W X 185.425mm (Each Unit)

Fill Rates:

2.5 Gallon TankFill Rate
0 to 200 PSI 4 min. 55 sec. (± 10 sec.)
165 to 200 PSI 1 Min 10 sec. (± 10 sec.)
5.0 Gallon Tank Fill Rate
0 to 200 PSI 10 min. 10 sec. (± 15 sec.)
165 to 200 PSI 2 min. 22 sec. (± 10 sec.
